| LCD size |
2.3-inch full-color TFT LCD |
| GPS |
- |
| G-sensor |
○ (ON/OFF adjustable: can be set in 0.1G increments from 0.1G to 1.0G) |
| Compatible with LED traffic signals |
◯ |
| HDR/WDR function |
◯ |
| Parking surveillance mode |
Optional (HDROP-05 "Parking Surveillance/Direct Wiring Unit" required) |
| Noise reduction |
◯ |
| Recording size |
FullHD (1920×1080)/HD (1280×720)/SD (640×360) |
| frame rate |
9fps/19fps/29fps *Frame rate has been
adjusted to prevent recording of LED traffic lights while they are off.
|
| image quality |
You can choose between high-resolution and low-resolution options. |
| Recording method |
Continuous recording / Event recording (impact recording / Manual recording) |
| Voice recording |
ON/OFF possible |
| Video file format |
MOV (MPEG-4 AVC/H.264) |
| Recording file structure |
Each file is 30 seconds long. |
| How to play back recorded video |
○ Dedicated viewer software (included on microSDHC card)
*For Windows 7/8.1 only
|
| ○Video output (sold separately: AV cable VC-100) |
| ○Main unit LCD |
| recording media |
microSDHC card (included: 8GB/class 10)
*Supports 4GB to 32GB, class 10 recommended
|
| Safety features |
SD card
Check function
|
○ The SD card will be checked at startup, and you will be notified if it is damaged.
|
| Emergency recording stop function |
○In the event of a major impact such as an accident, recording will automatically stop to prevent overwriting . (ON/OFF adjustable)
|
| File protection feature |
○A dedicated system minimizes file corruption
and protects files even if the power is cut off due to an accident.
|
| Camera brightness adjustment |
◯ (Adjustable in 3 stages) |
| Adjusting the brightness of the LCD screen |
◯ (Adjustable in 3 stages) |
| LCD display during recording |
◯ (Always on/30 seconds on/OFF) |
| Calendar/Clock display |
◯ |
| LCD inversion function |
◯ |
| Recording of date and time information |
◯ |
| Drive support function |
◯ (Detects and notifies you of sudden acceleration, sudden deceleration, and sudden steering.) |
| Automatic setting function |
◯ Easily change recording size, frame rate, and image quality settings all at once.
|
| Easy Switch |
◯ (You can choose from three types: playback, video recording, and audio recording) |

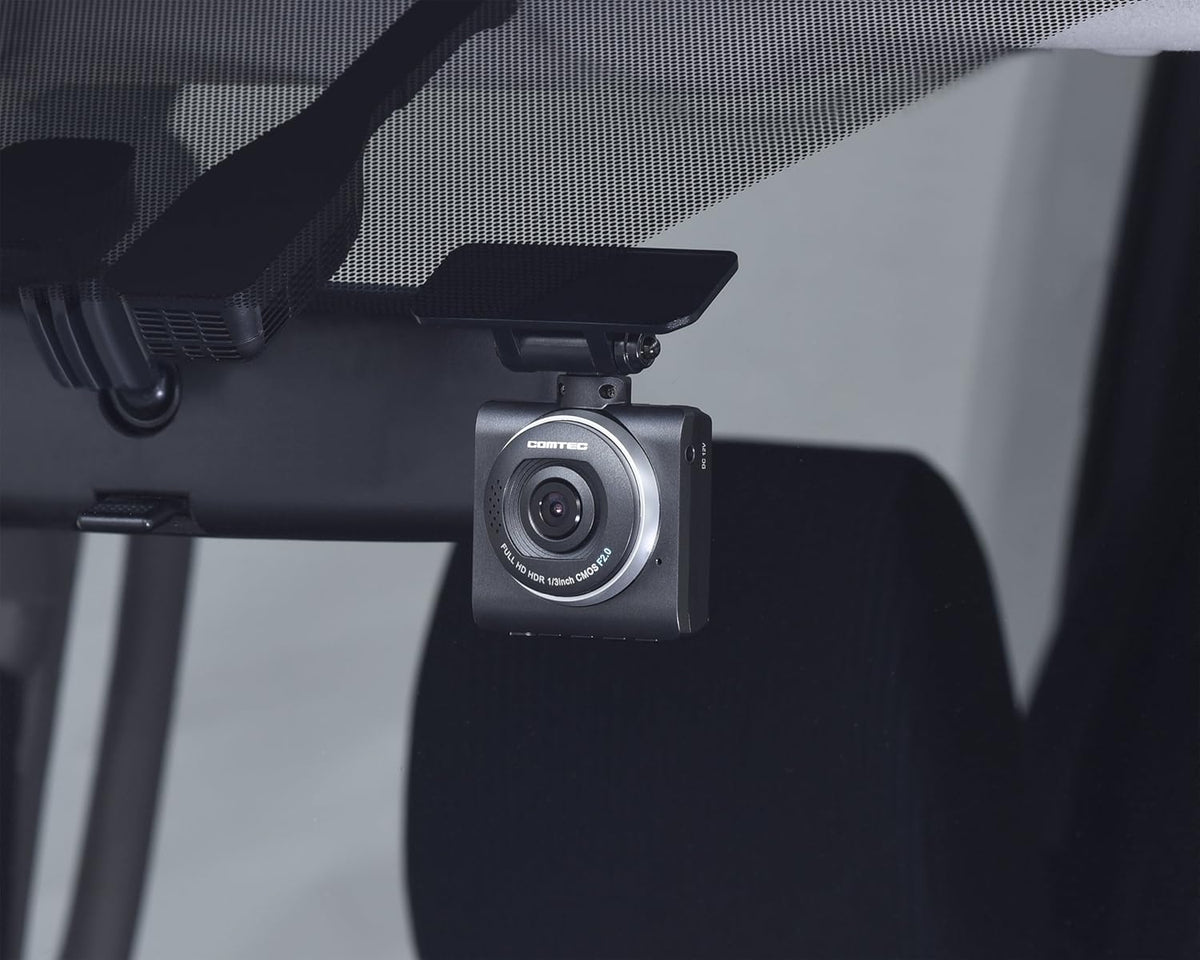

| Installation |
Behind the rearview mirror |
◯ |
| Dashboard |
◯ |
| Compatible Vehicles |
12v car |
